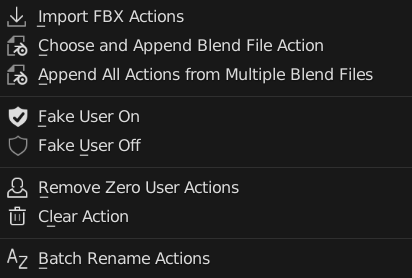

Menu Operators

Operators to Manage Action Bin

_images/ActionBinMenuOperator.png

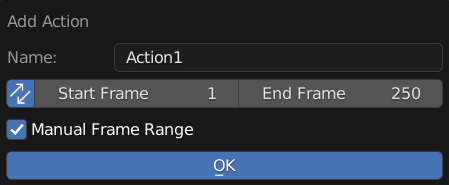

Add New Action

Add New Empty Action to this Object

_images/ActionBinAddAction.png

Name: New Action Name

Sync: Also Update Scene Frame Range Live

Manual Frame Range: Use Manual Frame Range

Manual Frame Range = True

Start: Start Frame

End: End Frame

Use Fake User: New Action Will Use Fake User

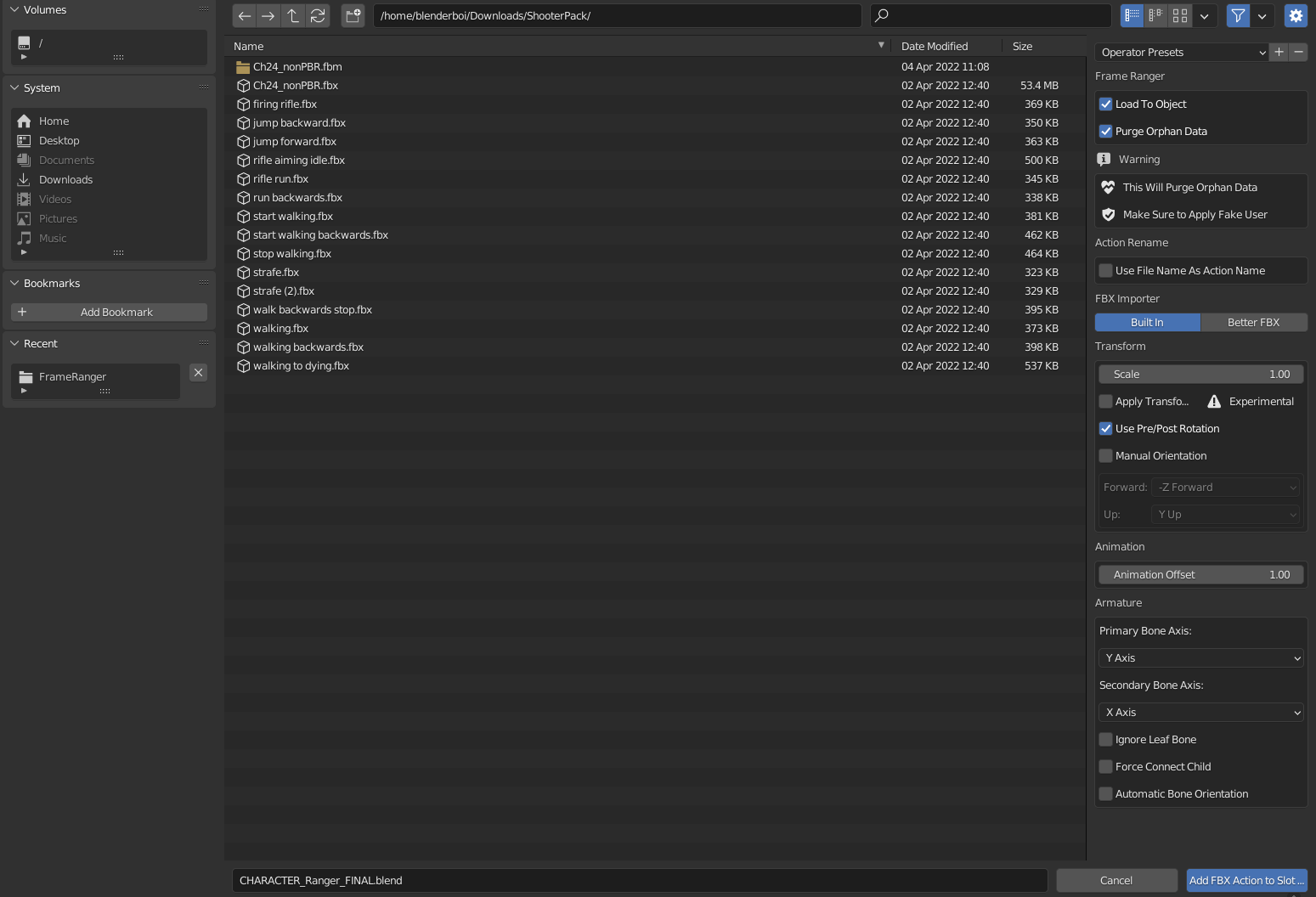

Import And Load FBX Actions

A Wrapper Operator for Import FBX, Also Have Options to Use BetterFBX for Importing if is installed

It Will Import the FBX and Remove All the Imported Items except Actions

Note

Action Bin Version Does Not Load the Action to Object

_images/ImportFBX.png

Use File Name as Action Name: Imported Action Will Use Its own File name, Useful for importing in Mixamo Animation

FBX Importer: Import Method

  • Build In: Uses Build in FBX importer

  • BetterFBX: Uses BetterFBX if Better FBX is Installed.

Import Settings: These is the Same as either import fbx settings or betterfbx settings.

Warning

This Operator Will Remove Orphan Data, Make Sure all wanted data are not orphan data

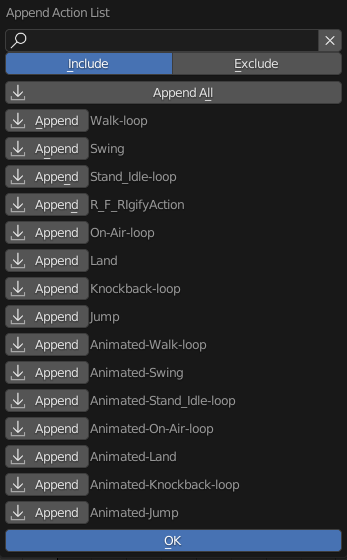

Choose and Append Blend File Action

Pick and Choose Action from One Blend File to Append From and Append to this Blend File

After Choosing a blend file, a pop up similar to Action Loader will appear, You can Pick and Choose which action to append by clicking on the action

Search Filter Also works like Action Loader

Note

Action Bin Version Does Not Load the Action to Object

_images/AppendActionList.png

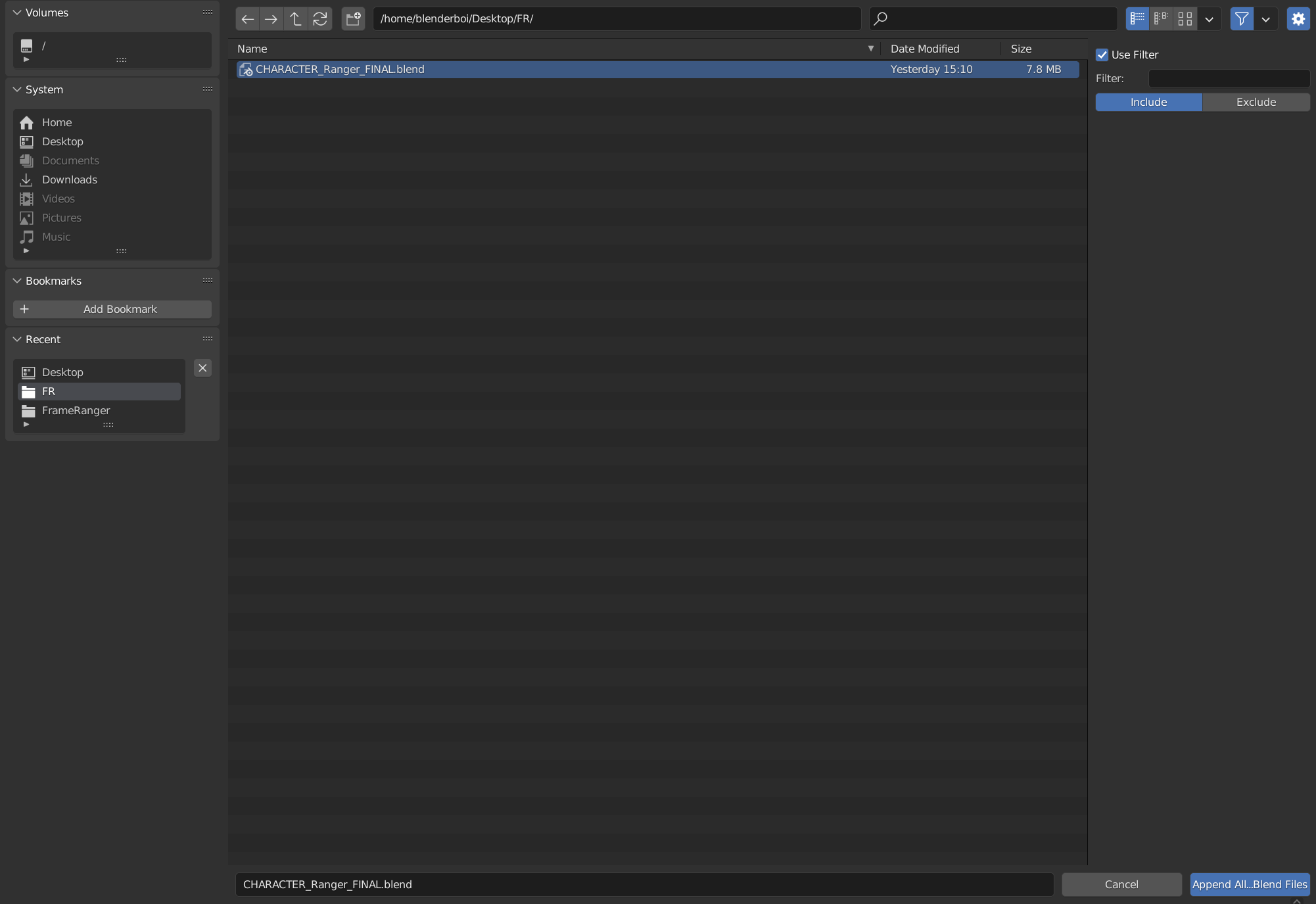

Append All Actions From Multiple Blend Files

Append All or Filtered Actions From Multiple Blend Files to this Blend File

_images/AppendAllAction.png

Note

Action Bin Version Does Not Load the Action to Object

Use Filter: Enable Filter

Use Filter: Filter Appended Action

Include / Exclude: Filter Method

  • Include: Check if Action Name Include Filter String

  • Exclude: Check if Action Name Exclude Filter String

Remove Zero User Actions

Remove Actions with No Users


Fake User On

Turn On All Fake User of Actions in this blend file


Fake User Off

Turn Off All Fake User of Actions in this blend file

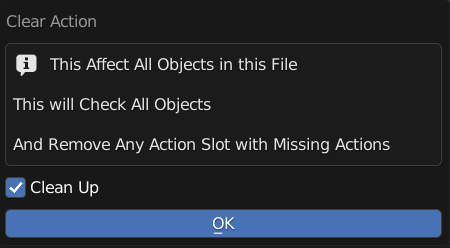

Clear Action

Clear All Action in this Blend File

_images/ClearAllAction.png

Clean Up: Remove Missing Action Slot from All Objects


Batch Rename Actions

Batch Rename All the Action in List, Adding Prefix, Suffix, or Find and Replace

_images/BatchRenameActionBin.png

Mode: Method of Rename

  • Prefix: Prepend String A to the Start of the Name

  • Suffix: Append String A to the End of the Name

  • Replace: Find String A and Replace with String Batch

  • Remove: Remove String A from Name

String A (Prefix / Suffix / Find): Use for Prefix, Suffix, Find and Remove

String B (Replace): Stirng to be Replaced
