Menu Operators

Operators to Manage Frame Ranger List, Find Next to the Frame Range List

_images/FrameRangeManagerOperators.png

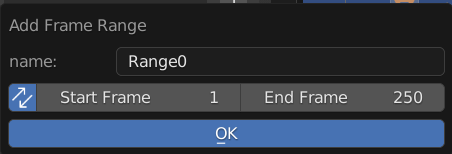

Add Frame Range

_images/AddFrameRange.png

Add Frame Range to List

Name: Name of the New Frame Range

Sync: Also Update Scene Frame Range Live

Start: Start Frame

End: End Frame


Clear Frame Range

Remove All Frame Range From List


Batch Rename

Batch Rename All the Frame Range in List, Adding Prefix, Suffix, or Find and Replace

_images/BatchRenameFrameRange.png

Mode: Method of Rename

  • Prefix: Prepend String A to the Start of the Name

  • Suffix: Append String A to the End of the Name

  • Find and Replace: Find String A and Replace with String Batch

String A (Prefix / Suffix / Find): Use for Prefix, Suffix, and Find

String B (Replace): Stirng to be Replaced


Sort Frame Range

Sort Frame Range in the List to be in Order

_images/SortFrameRange.png

Reverse: Sort in Reverse Order

Mode: Sort By Method

  • Name: Sort by Frame Range Name

  • Range Size: Sort by Frame Range Size

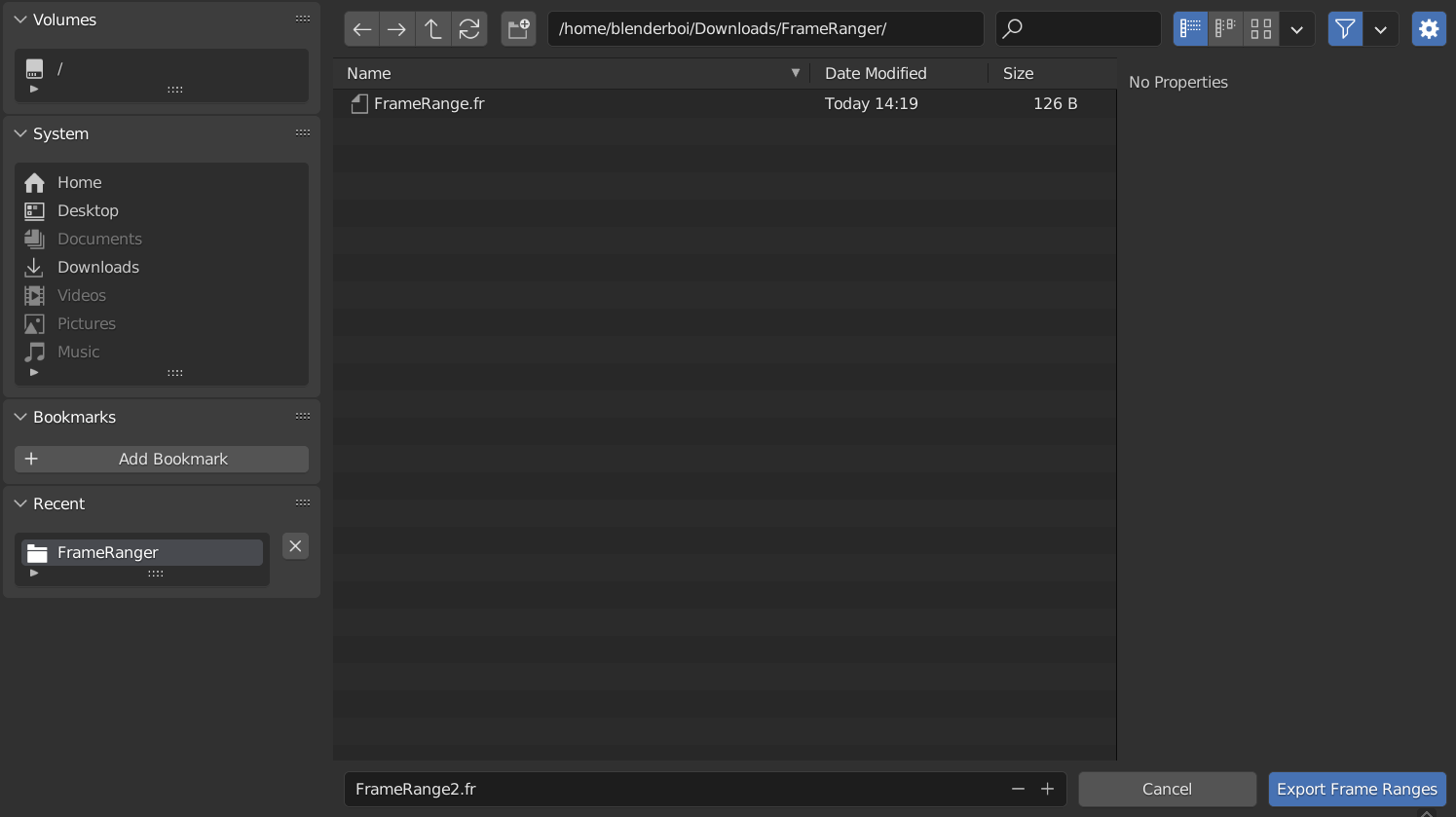

Export & Import Frame Range

Export or Import Frame Range from or to scene

_images/ExportFrameRange.png

The File Exported is Actually a json File, but the Extension is .fr so that it will be easier to be identified


Markers From Frame Range

Creates Timeline Markers From Frame Range List

_images/MarkersFromFrameRange.png

Mode: Sort By Method

  • Pair: Starting and End Marker will use the Same Name

  • Prefix: Prepend Prefix to Start and End to the Created Marker

  • Suffix: Append Suffix to Start and End to the Created Marker

Start: String to use adding Affixes on the Start Marker

End: String to use adding Affixes on the End Marker

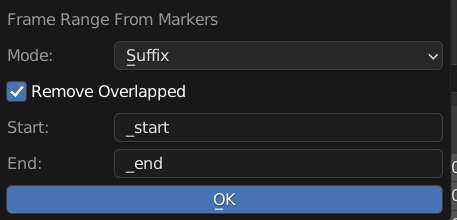

Frame Range From Markers

Creates Frame Range From Detected Timeline Markers

_images/FrameRangeFromMarkers.png

Mode: Sort By Method

  • Pair: Find Marker Pairs with Same Name

  • Prefix: Find Marker Pairs Using Prefix

  • Suffix: Find Marker Pairs Using Sufix

Remove Overlapped: Remove Overlapped Marker that have the same name Before Operation

Start: Affixes of the Start Marker to be found

End: Affixes of the End Marker to be found
