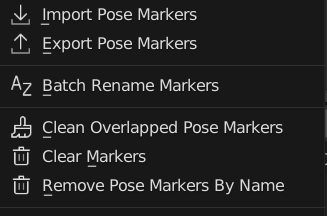

Menu Operators

Operators to Manage Object Action List

_images/PoseMarkerMenu.png

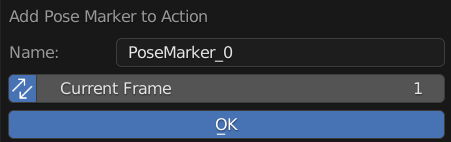

Add Pose Marker

Add New Pose Marker to this Action

_images/AddPoseMarker.png

Name: New Pose Marker Name

Sync: Also Update Current Frame Live

Frame: New Pose Marker Frame

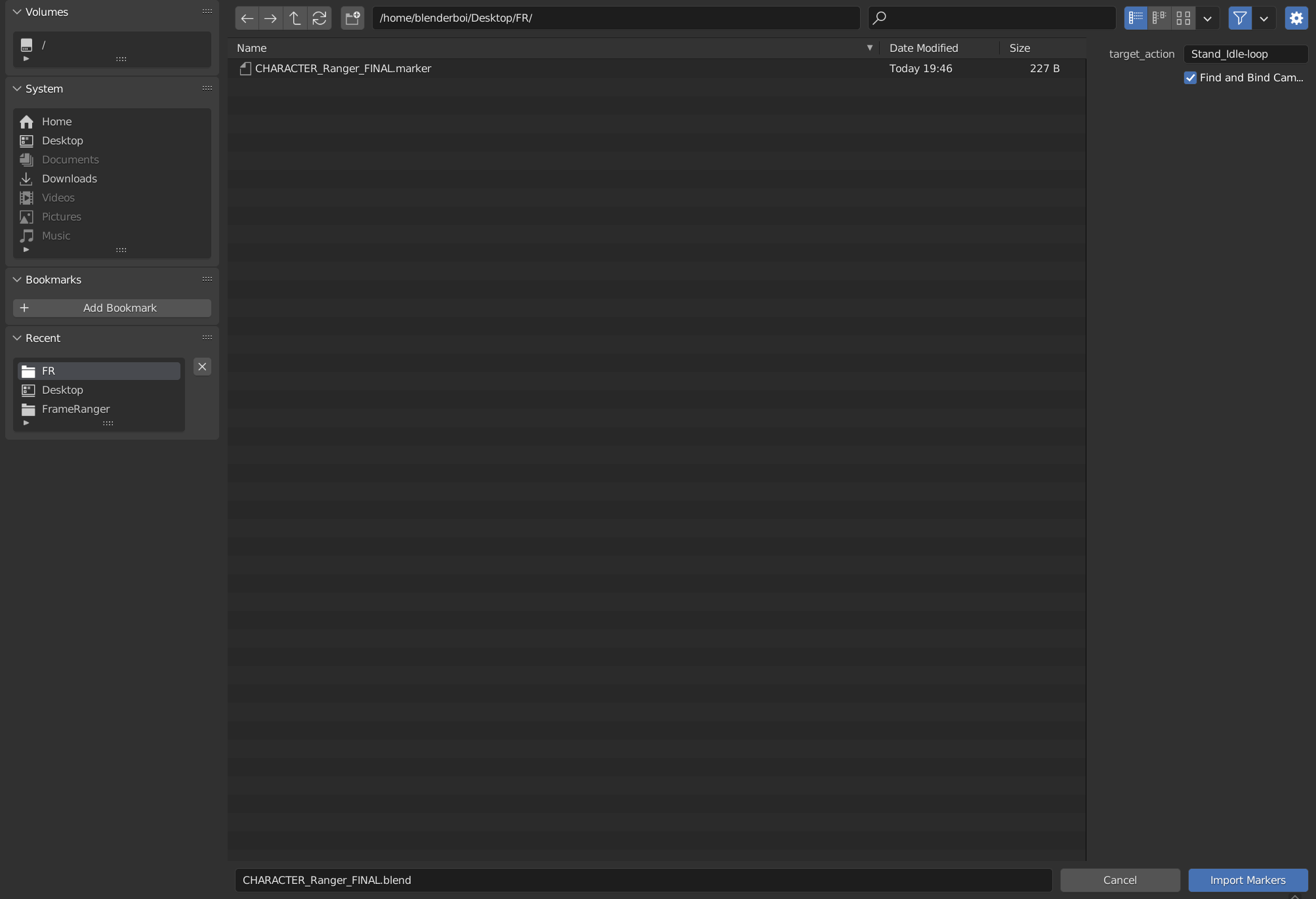

Export & Import Pose Marker

Import Pose Marker to This Action

_images/ImportExportPoseMarker.png

The File Exported is Actually a json File, but the Extension is .marker so that it will be easier to be identified

Note

Timeline Marker and Pose Marker Can be Imported or Exported Interchangebly

They are technically the same type of object

The only difference is pose marker is stored in Action and Timeline Marker is stored in scene

And Binding Pose Marker to Camera Doesn’t Seems to Have Any Uses Compare to Timeline Markers

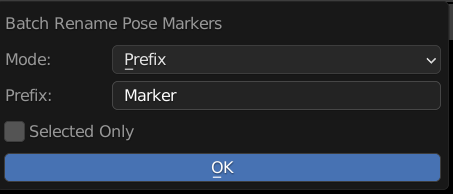

Batch Rename Marker

Batch Rename All the Pose Markers of this action, Adding Prefix, Suffix, or Find and Replace

_images/BatchRenamePoseMarker.png

Mode: Method of Rename

  • Prefix: Prepend String A to the Start of the Name

  • Suffix: Append String A to the End of the Name

  • Find and Replace: Find String A and Replace with String Batch

String A (Prefix / Suffix / Find): Use for Prefix, Suffix, and Find

String B (Replace): Stirng to be Replaced

Selected Only: Only Rename Selected Markers


Clean Overlapped Pose Markers

Remove All Overlapping Duplicates of Pose Marker with Same Name And Frame


Clear Markers

Remove All Pose Markers From this Action

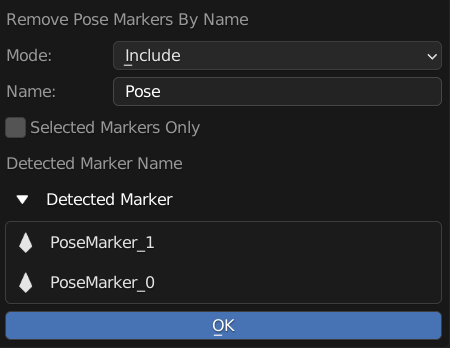

Remove Pose Markers By Name

Remove Pose Marker If there is a Match In Name

_images/RemovePoseMarkerByName.png

Mode: Method of Matching

Include: Check if the input string is in the pose marker name

Exclude: Check if the input string not in the pose marker name

Exact: Check if the input string is exactly equal to the pose marker name

Name: Input String For Find Matching Pose Marker

Selected Markers Only: Only Remove Selected Pose Marker

Detected Marker: Preview Of Markers that will be deleted
