Menu Operators

Operators to Manage Object Action List

_images/TimelineMarkersMenu.png

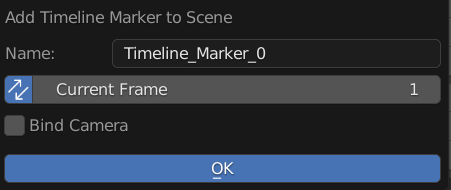

Add Timeline Marker

Add New Timeline Marker to this Action

_images/AddTimelineMarker.png

Name: New Timeline Marker Name

Sync: Also Update Current Frame Live

Frame: New Pose Marker Frame

Bind Camera: Bind A Camera to this Timeline Marker

Camera Mode: Camera to Bind

  • Create From View

  • Active Camera

  • Camera

Camera Mode = Create From View

Create A New Camera From View And Bind to Marker

  • Set Camera Name: Enable to Set Created Camera Name (Use Marker Name if Off)

  • Camera Name: New Camera Name

  • View Camera: View Camera After Creation

Camera Mode = Camera

Pick an Existing Camera to Bind to Marker

  • Camera: Camera Picker to Bind to Marker

  • Only Camera: Limit Picker to only Pick Camera Object

  • View Camera: View Camera After Creation

Camera Mode = Active Camera

Pick Selected Active Camera to Bind to Marker

  • View Camera: View Camera After Creation

Reorder Timeline Marker

Reorder Timeline Markers in the List

_images/ReorderMarker.png

Warning

This Operator Is A Hacky Feature, It works By Remove All Markers and Recreating it.

It Might be Destructive if it breaks

You Might Lose Your Marker if this Operator Fails Halfway


Export & Import Timeline Marker

Import / Export Timeline Marker to This Scene

_images/ImportTimelineMarkers.png
Import

Find and Bind Camera: Find Relevant Camera and Bind to Marker (By Name)

The File Exported is Actually a json File, but the Extension is .marker so that it will be easier to be identified

Note

Timeline Marker and Pose Marker Can be Imported or Exported Interchangebly

They are technically the same type of object

The only difference is pose marker is stored in Action and Timeline Marker is stored in scene

And Binding Pose Marker to Camera Doesn’t Seems to Have Any Uses Compare to Timeline Markers

Sort Timeline Markers

Sort Timeline Markers By Name or Frame

Warning

This Operator Is A Hacky Feature, It works By Remove All Markers and Recreating it.

It Might be Destructive if it breaks

You Might Lose Your Marker if this Operator Fails Halfway

_images/SortTimelineMarker.png

Sort By: Sort method

  • Frame: Sort the List Base on Marker’s Frame

  • Name: Sort the List Base on Marker’s Name

Reverse: Reverse the Sort

Disable Warning: Disable The Warning

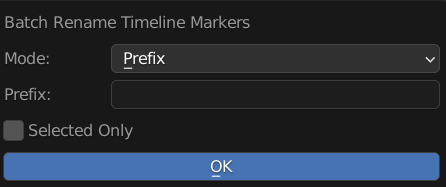

Batch Rename Marker

Batch Rename All the Timeline Markers of this Scene, Adding Prefix, Suffix, or Find and Replace

_images/BatchRenameTimelineMarkers.png

Mode: Method of Rename

  • Prefix: Prepend String A to the Start of the Name

  • Suffix: Append String A to the End of the Name

  • Find and Replace: Find String A and Replace with String Batch

String A (Prefix / Suffix / Find): Use for Prefix, Suffix, and Find

String B (Replace): Stirng to be Replaced

Selected Only: Only Rename Selected Markers


Bind Cameras To Markers By Name

Find Cameras and Bind it to Markers By Name

_images/BindCamerasToMarkersByName.png

Selected Camera Only: Only Find Cameras From Selected Object


Remove Non Binded Camera

Remove All Camera that is not Binded to Timeline Markers

_images/RemoveNonBindedCamera.png

Prompt: This is Just a Confirmation Prompt

Warning

This Operator Mass Delete Objects, It Can be Destructive


Clean Overlapped Timeline Markers

Remove All Overlapping Duplicates of Timeline Marker with Same Name And Frame


Clear Markers

Remove All Pose Markers From this Action

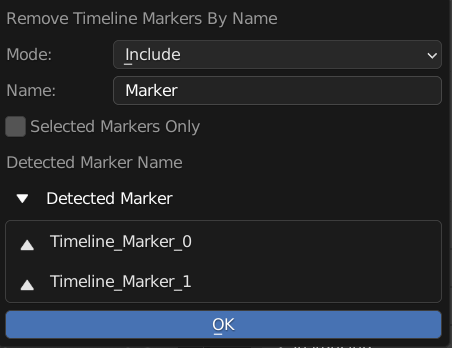

Remove Timeline Markers By Name

Remove Timeline Marker If there is a Match In Name

_images/RemoveTimelineMarkerByName.png

Mode: Method of Matching

Include: Check if the input string is in the Timeline Marker name

Exclude: Check if the input string not in the Timeline Marker name

Exact: Check if the input string is exactly equal to the Timeline Marker name

Name: Input String For Find Matching Pose Marker

Selected Markers Only: Only Remove Selected Pose Marker

Detected Marker: Preview Of Markers that will be deleted
